Fix Numax Framing Nailer Issues: Quick Steps

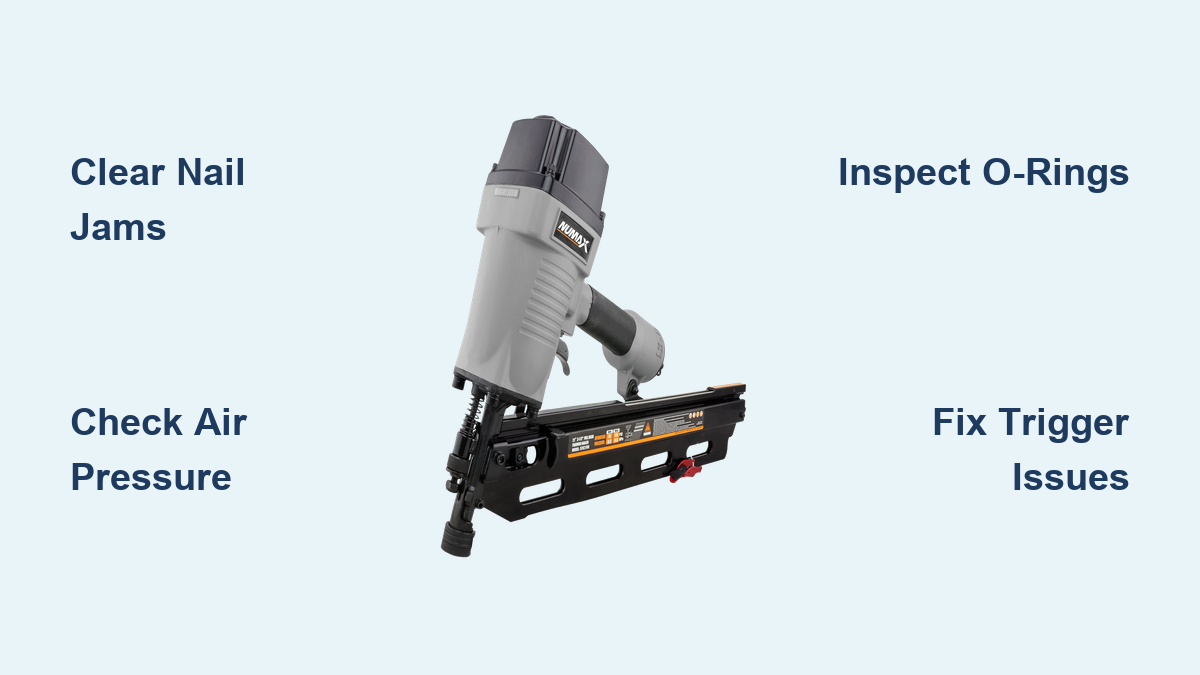

If your Numax framing nailer SFR2190 suddenly stops firing, jams repeatedly, or won’t accept nails properly, you’re not alone. This 2012 model is known for solid performance, but like any pneumatic tool, it can develop issues over time. The good news? Most problems are fixable with basic troubleshooting and maintenance.

While official repair guides, diagrams, and manuals exist for the SFR2190, detailed step-by-step fixes aren’t always easy to find, especially with limited community questions or shared fixes online. In this guide, you’ll learn how to diagnose common problems using available resources and practical steps to get your nailer back to work fast.

Access Repair Guides and Diagrams

Enable JavaScript to View Resources

To access official Numax SFR2190 repair guides, manuals, and technical diagrams, you must have JavaScript enabled in your browser. The support platform hosting these resources relies on JavaScript for full functionality. If disabled, you’ll be unable to view diagrams or download troubleshooting help, even if the page appears to load. Simply open your browser settings, allow JavaScript for the site, and refresh the page to unlock all available documentation.

Use the Technical Diagram to Identify Parts

At least one technical diagram is available for the SFR2190 model. These visuals are critical when disassembling the nailer or replacing internal components. Use the diagram to:
– Locate the nosepiece, driver blade, O-rings, and valve assembly
– Identify magazine spring and feed mechanism parts
– Match replacement parts to original components

Without this visual aid, reassembly errors are common. Always refer to the diagram before removing any internal parts.

Clear Nail Jams Quickly

Remove Nails from Magazine

A jammed nail is the most frequent cause of stoppage in framing nailers. To clear it:
1. Disconnect the air hose immediately for safety.
2. Open the magazine latch and slide it forward.
3. Pull out the nail strip carefully.
4. Inspect for bent nails or debris blocking the feed path.

If nails are bent or rusted, replace the strip with compatible fasteners before continuing.

Clear the Nose After Firing Failures

If the nailer fired but didn’t eject fully:
1. Turn off the air supply.
2. Open the nose mechanism to access the driver channel.
3. Gently tap the driver blade upward with a punch and hammer.
4. Remove the jammed nail from the nose.

Never force the driver down, as this can damage the internal piston.

Diagnose Air Pressure Problems

Test with a Regulated Air Supply

Low or inconsistent air pressure prevents the driver from cycling fully. Use an in-line pressure gauge to verify:
– Your compressor delivers steady pressure
– The hose isn’t leaking
– The nailer’s trigger valve responds at minimum operating PSI

If pressure drops when firing, check for kinks in the hose or a failing compressor pump.

Check for Air Leaks at Seals

Air leaks reduce power and cause misfires. To test:
1. Apply soapy water to:
– Cylinder base
– Nose O-rings
– Air inlet fitting
2. Pressurize the tool with no nails loaded.
3. Look for bubbling, which indicates a leak.

Replace any worn O-rings or gaskets using parts labeled for the SFR2190. Lubricate new seals with pneumatic tool oil before installation.

Fix Firing Mechanism Failures

Inspect Trigger and Safety Tip

Misfires often stem from trigger or safety mechanism issues. The SFR2190 uses a sequential safety tip that must be fully depressed before the trigger fires the nail.

To test:
1. Hold the nailer off the workpiece.
2. Press the safety tip fully into a surface.
3. Pull the trigger smoothly.

If it doesn’t fire, disassemble the trigger assembly and:
– Check for grime or dried oil buildup
– Ensure the sear lever moves freely
– Confirm the valve actuator isn’t stuck

Clean with degreaser and re-lubricate with light oil.

Verify Valve Operation

The pilot valve controls air release to the driver. If it fails, the piston won’t strike.

To check:
1. Disassemble the rear valve housing using the technical diagram.
2. Look for:
– Stuck plunger
– Cracked diaphragm
– Corroded valve seat
3. Blow compressed air through the port to test movement.

Replace the valve assembly if any part is damaged. Do not attempt to repair sealed components.

Adjust and Maintain Depth Settings

Set Consistent Nail Depth

Inconsistent depth can cause nails to sit proud or driven too deep, damaging materials. The SFR2190 features a depth adjustment knob on the nose.

To calibrate:
1. Test fire into scrap wood.
2. Turn the knob clockwise to drive nails deeper.
3. Turn counterclockwise to reduce depth.
4. Lock in the setting once flush driving is achieved.

Always adjust depth with the air disconnected.

Clean Depth Mechanism Regularly

Dirt and old oil can gum up the depth adjuster. Remove the knob and:
– Wipe away debris
– Apply a drop of pneumatic tool oil
– Rotate the mechanism to distribute lubricant

This prevents binding and ensures smooth adjustment.

Prevent Magazine Feeding Issues

Check Spring Tension

Weak magazine spring tension causes nails to lag or misalign. To test:
1. Remove the nail strip.
2. Compress the spring follower fully.
3. Release and confirm it returns quickly and smoothly.

If movement is slow or sticky:
– Disassemble the magazine
– Clean the rail and spring
– Replace the magazine spring if fatigued

Align Nails Before Loading

Misfires often occur when nails are loaded at an angle. Always:
– Ensure the magazine is fully retracted before loading
– Slide the nail strip in straight and flush
– Confirm nails sit flat on the feed rails

Never force the magazine closed. If resistance occurs, reposition the nails.

Perform Routine Maintenance

Lubricate Moving Parts Weekly

Proper lubrication prevents wear and ensures smooth firing. After each use:
1. Add 2–3 drops of pneumatic tool oil into the air inlet.
2. Fire the nailer 5–10 times into a block of wood to distribute oil.
3. Wipe down the exterior with a dry cloth.

Skip oiling, and internal parts like the piston, O-rings, and valve will degrade faster.

Inspect O-Rings and Seals Monthly

O-rings degrade from heat, pressure, and age. Every 30 days:
1. Disassemble the nose and cylinder.
2. Check O-rings for:
– Cracks
– Flattening
– Swelling
3. Replace any damaged seals.

Keep a spare O-ring kit on hand for quick field repairs.

Engage Support and Community

Ask Questions in the Forum

The Numax SFR2190 support forum currently has no posted questions, making it an active platform for user help. Be the first to:
– Describe your issue clearly
– Attach photos or diagram references
– Request part numbers or repair tips

The contributor iRobot (member since 2009, 632 guides authored) monitors the forum and can provide expert guidance.

Use Verified Repair Guides

Over 632 repair guides have been published by the platform’s top contributor, ensuring reliable methods. When troubleshooting:
– Filter guides by SFR2190 model
– Look for badge-verified content (37+ badges indicate expertise)
– Check activity stats, since guides with recent views are more likely up to date

These guides often include steps not found in the official manual.

Frequently Asked Questions About Numax Framing Nailer Troubleshooting

What is the Numax SFR2190 framing nailer and when was it released?

The Numax SFR2190 is a pneumatic framing nailer released in 2012. It is designed for framing applications and has repair guides, manuals, and technical diagrams available through the support platform.

Where can I find repair guides for the Numax SFR2190?

Repair guides, manuals, troubleshooting help, and technical diagrams are available directly through the Numax support platform. JavaScript must be enabled in your browser to access these resources.

Why does my Numax framing nailer keep jamming?

Jamming typically results from bent fasteners, debris in the magazine, or worn feed components. Disconnect the air supply, clear the magazine, inspect for damaged nails, and verify spring tension before reloading.

How do I fix air leaks in my Numax SFR2190?

Apply soapy water to seals, O-rings, and fittings while the tool is pressurized. Bubbling indicates a leak. Replace any worn seals with parts labeled for the SFR2190 and lubricate them with pneumatic tool oil.

Can I ask questions about my Numax nailer in the support forum?

Yes. The community forum accepts user questions. Although it currently has no posted questions, users are encouraged to submit the first inquiry. The top contributor, iRobot, monitors the forum for expert responses.

How often should I lubricate my Numax framing nailer?

Add 2–3 drops of pneumatic tool oil into the air inlet after each use, then cycle the tool several times into scrap wood. Monthly inspections of O-rings and seals help catch wear before failures occur.

Key Takeaways for Numax Framing Nailer Troubleshooting

The Numax SFR2190 is a durable tool, but performance depends on proper care and quick troubleshooting. Most common problems fall into four categories: nail jams, air pressure inconsistencies, firing mechanism failures, and magazine feeding issues. By using available diagrams, repair guides, and community support, you can resolve these problems efficiently.

Focus on air pressure, lubrication, and seal maintenance to prevent the majority of failures. Keep your JavaScript-enabled browser bookmarked to the official support page so you can pull up diagrams and guides the moment a problem appears. With the right approach, your Numax framing nailer troubleshooting efforts will save time, reduce downtime, and extend the life of your tool.
